Fittings

Precision pipe fittings for your next engineering project

High-quality buttweld & forged fittings to industry standards for reliable & durable piping applications.

A reliable piping system depends entirely on the mechanical integrity of its connections. Pipechem provides an extensive selection of standard and heavy-duty pipe fittings designed to change flow direction, adapt line sizes, or branch off main headers smoothly while maintaining pressure integrity.

Our fittings are manufactured to ASME B16.9 (buttweld) and ASME B16.11 (forged high-pressure) standards, ensuring exact wall tolerances and seamless integration into your existing systems.

Fitting Specifications

Our pipe fittings cater for a range of local and international certifications to suit your specific installation requirements.

ASME B16.9

Factory-made wrought butt-welding fittings.

ASME B16.11

Forged fittings, socket-welding and threaded.

EN10253-2

European standard, butt-welding pipe fittings.

MSS-SP-95

Swage nipples and bull plugs.

MSS-SP-97

Integrally reinforced forged branch outlet fittings.

Fitting Types

We supply a comprehensive variety of pipe fittings in various materials, including bends, tees, crosses, reducers, swage nipples and weldolets.

45 Degree Long Radius Bends

90 Degree Long Radius Bends

90 Degree Short Radius Bends

180 Degree Long Radius Bends

180 Degree Short Radius Bends

Concentric Reducers

Eccentric Reducers

Equal Crosses

Equal Tees

Reducing Tees

Swage Nipples

Weldolets

Seamless Fittings

We supply a range of seamless pipe fittings formed without a weld or seam. Ideal for high-pressure installations.

Size Range (OD)

½” – 48” (DN15 – DN1200).

Wall Thickness

SCH 10 – XXS (3.2 mm – 16.0 mm).

Welded Fittings

Our welded pipe fittings provide a high-quality, cost-effective choice for lower pressure installations.

Size Range (OD)

26” and larger (DN650+).

Wall Thickness

Custom schedules upon request.

Fitting Materials

We supplier carbon steel pipe fittings, low temperature pipe fittings, stainless steel pipe fittings and a variety of alloy pipe fittings.

Carbon Steel

WPB, P265GH

Low Temperature

WPL3, WPL6

Chrome Molley

16Mo3, 13Cr, WP5, WP9, WP11, WP22

Stainless Steel

WP304, WP304L, WP304H, WP310, WP310H, WP316, WP316L, WP317, WP317L, WP321, WP321H, WP347, WP347H, WP904, WP904L, Duplex – UNS S31803, Alloy 20, Monel, Inconel

Fitting Stock Holdings

These are some of the pipe fitting stocks we generally have on hand, ready to supply. Contact us to confirm availability or to source alternative or custom fittings.

FittingSize Range
SA234 WPB3/8” – 26”
SA234 WPB-WX1/2” – 26”
SA234 WPB-WX / WPHY 5226” – 48”
SA234 WPB-WX26” – 48”
EN10253-2 P235GH1/2” – 12”
EN10253-2 P265GH1/2” – 24”
SA420 WPL31/2” – 12”
SA420 WPL61/2” – 24”
SA234 WP51/2” – 24”
SA234 WP91/2” – 24”
SA234 WP11 CL1 & CL21/2” – 24”
SA234 WP221/2” – 24”
EN10253-2 16Mo31/2” – 24”
EN10253-2 13CrMo4-51/2” – 12”
EN10253-2 10CrMo4-51/2” – 8”
SA403 WP304 / L1/2” – 24”
SA403 WP310 / H1/2” – 8”
SA403 WP316 / L1/2” – 24”
SA403 WP317 / L1/2” – 8”
SA403 WP321 / H1/2” – 24”
SA403 WP347 / H1/2” – 8”
SA403 WP904 / L1/2” – 8”
UNS S318031/2” – 12”
B366 WP20CB1/2” – 6”
Monel 4001/2” -6”

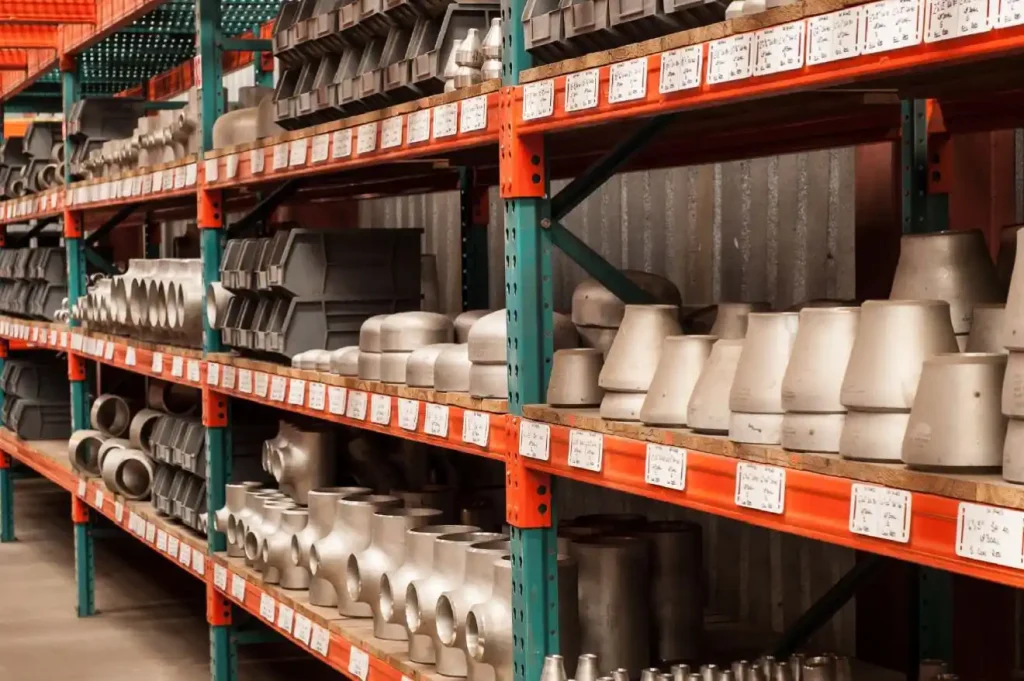

Pipechem warehouse racking stocked with stainless steel pipe caps, reducers, tees, and forged fittings

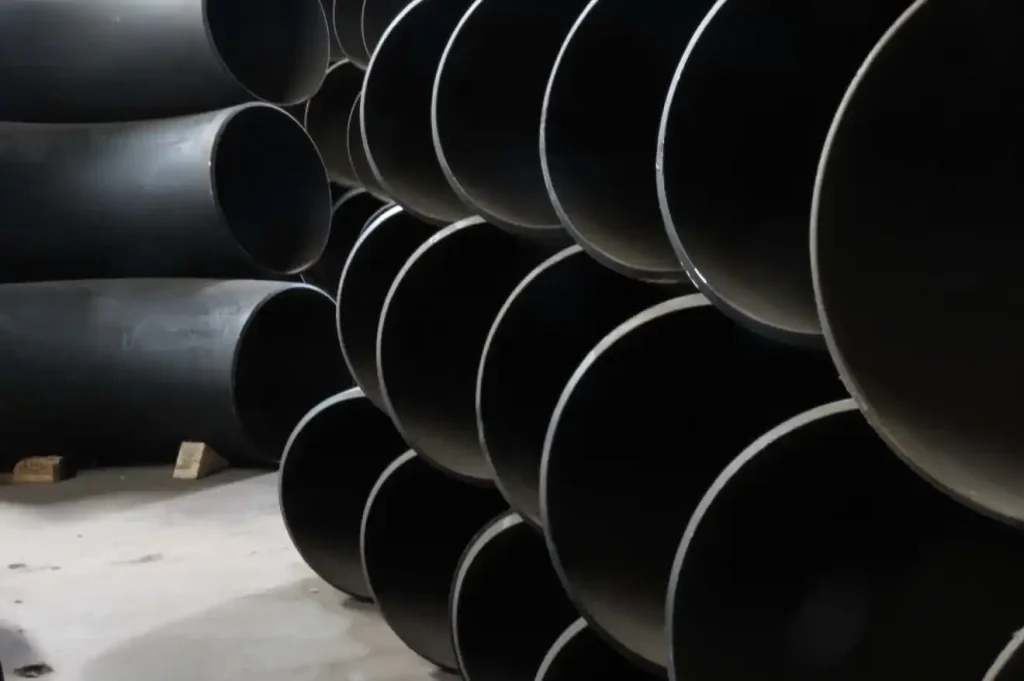

Pipechem warehouse stack of large-diameter carbon steel pipe elbows and 90-degree bends

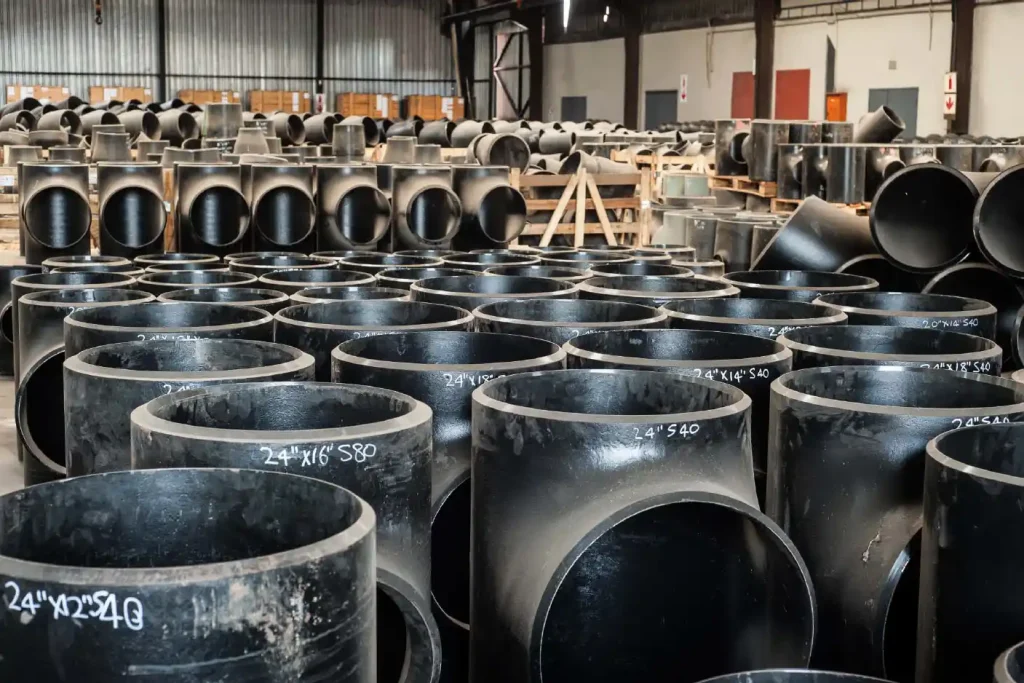

Large-diameter black steel butt-weld pipe tees and reducing tees stacked in a Pipechem warehouse

Let us supply, import or manufacture fittings to your needs.

We supply pipe fittings in carbon steel, stainless and alloy to all provinces across South Africa.
